AI SVG Case Studies: Three Examples with Complete Files
By Ashesh Dhakal, Founder, SVG AI
ai svg generatorcase studiessvg generatordesign workflow
A useful SVG example lets you inspect what was requested, what the generator produced and what changed afterward. These three demonstrations include complete files, so you can compare the artwork instead of relying on a claimed success rate.
They use owned fictional briefs and were made for SVG AI tutorials in September 2026. They are not customer testimonials, commissioned client projects or measurements of business returns. SVG AI publishes these examples.
| Example | Question it answers | Files to inspect |
|---|---|---|
| Fieldnote bookmark | Does a prompt produce exact brand colors? | Generated source and manual palette finish |
| Envelope, bell and gear | How much consistency does a reference provide? | Three generated originals and three manual finishes |
| Reference-guided leaf | Does a reference lock the requested navy? | Reference, text-only leaf and reference-guided leaf |
1. Fieldnote: finish the exact palette in the source

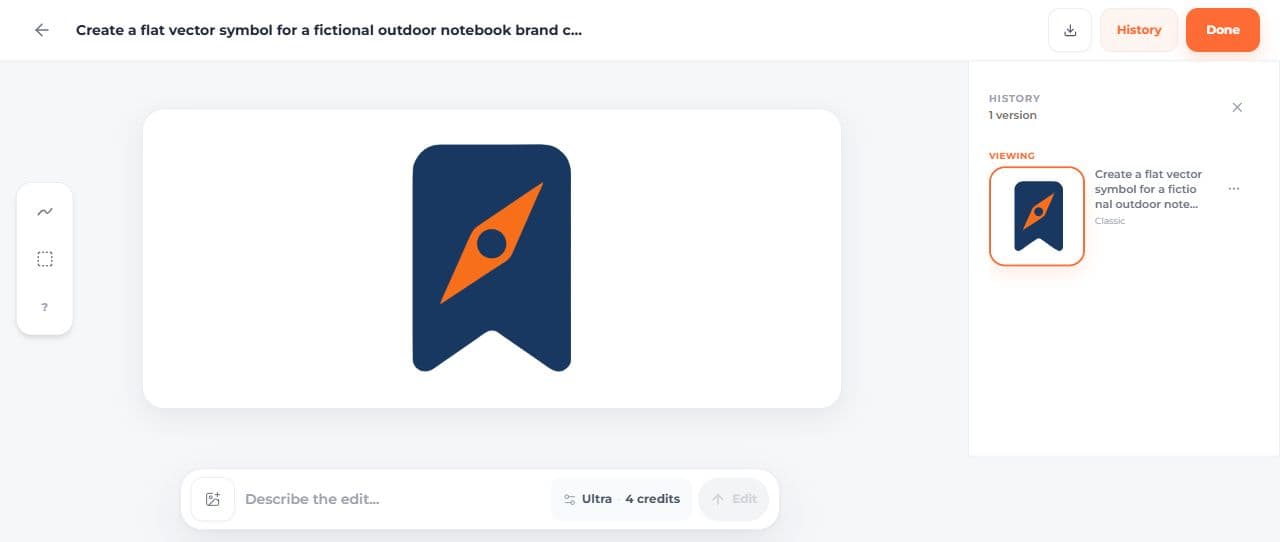

The September 14 Fieldnote brief described a fictional notebook brand. It requested a navy bookmark with an orange compass needle, centered with padding and without lettering, gradients, shadows or texture. The run used Classic, one SVG and a transparent background.
The generated source contains three paths. Its navy is rgb(24,56,98) and its orange is rgb(247,111,27). These differ from the requested #18345F (rgb(24,52,95)) and #F97316 (rgb(249,115,22)).
The manual brand-color version applies the intended navy and orange. It is a manually prepared variant, not another AI generation. Compare the files in the logo-variants page, which also shows smaller sizes and versions for different surfaces.
The practical decision is whether the shape already works. If it does, changing known fill values is a precise way to finish the palette. Asking for a new generated interpretation may also change the geometry. The three-shape badge exercise gives a smaller hand-coded example if you want to practice attribute edits first.
2. A matching icon set: retain both the originals and the finish
On September 5, an envelope was generated first and reused as the reference for a bell and a settings gear. Each run used Classic, one SVG and transparency. The retained settings screenshots show Default for the ratio; the downloaded files have square viewBoxes. The anchor prompt requested a rounded blue outline, no text, no gradients, generous padding and readability at 24px.
The shared direction is visible, but the files do not contain the same blue:
| Original download | Fill value | Manual finish |
|---|---|---|
| Envelope | rgb(25,107,228) | Finished envelope |
| Bell | rgb(24,105,228) | Finished bell |
| Gear | rgb(25,105,225) | Finished gear |
All three use a 0 0 2048 2048 viewBox. Their outline appearance comes from filled path regions rather than an original adjustable stroke. The manual finishes set the same #2563EB fill and add a 24-unit stroke while keeping the original path coordinates.
Open the size comparison. It shows the originals at 24, 32 and 48px on a light surface, manual finishes at 24px, and the originals at 48px on a dark surface. The fine outlines remain a reason to inspect the actual display size, especially around the gear's small spaces.
The complete matching-set tutorial contains the full prompts and the finishing instructions. This three-output example supports a workflow you can inspect; it does not establish a percentage success rate for larger libraries.
3. A leaf reference: compare the file, not just the intention
The September 14 leaf comparison kept the written prompt and Classic/one-SVG/transparent settings the same. One leaf was generated from text alone; a second used the fictional Fieldnote notebook as a reference. The prompt requested a simple navy outline with no lettering, background, gradients or shadows.
The three relevant inputs and outputs are:
- Notebook used as the reference.
- Leaf generated without a reference.
- Leaf generated with the notebook reference.
The text-only leaf uses rgb(22,49,97); the reference-guided leaf uses rgb(15,55,102). Neither is the requested navy #18345F. Both leaves contain one path, but their coordinates and framing differ.
There was one output in each condition. That is not enough to separate a reference effect from ordinary variation between generations. The useful observation is narrower: attaching a reference did not make this particular output match the requested color exactly.
The manual navy leaf sets the requested fill and keeps the text-only original's path coordinates. The brand-consistency guide explains the comparison and how to keep a source and its manual finish separate.
Use an example to make a decision
Choose the example closest to your task, download its originals and compare them at your intended size. For your own project, retain the brief, reference, prompts, generated files and manual changes. Judge the finished output against the same requirements you would apply to a stock or manually drawn asset.
If cost matters, track all attempts and the time spent selecting, reviewing and finishing accepted assets. The cost-benefit worksheet shows how to calculate that with your own inputs; the small demonstrations on this page are not evidence of financial savings.
Use the AI SVG generator to explore a custom direction when that is the useful next step. Use a direct source edit when the existing shape works and the remaining change is an exact color or attribute value.
