A useful trial ends with a file another person can use. For Fieldnote, a fictional stationery project, that meant keeping the generated originals, correcting colors deliberately, and placing three badges in a product-page layout.
This guide follows that small project through a practical SVG generator workflow. It is published by SVG AI and uses our September 14, 2026 demonstration. Fieldnote is not a customer case study, and the example does not establish time savings or business results.
An earlier version included unsupported adoption targets, team-feature claims and a 5,629% ROI example. Those claims have been removed. The figures below describe the actual demonstration.
Define the finished task
Decide where the SVG will appear before generating it. Our product-page exercise needed three small badges beside the labels “Notebook details,” “Materials guide” and “Delivery options.” The labels carry the meaning; the drawings support it.
For your own trial, write down the subjects, display size, palette, background and any non-negotiable geometry. If an icon must retain exact coordinates between states, test that explicitly. A request to “change only the color” may still result in a regenerated shape.
Pre-Implementation Assessment
Choose a brief small enough to finish and inspect. Keep a reference copy of the current asset or layout so you can compare the whole result.
The Fieldnote badges used the following prompt, replacing only the bracketed subject:
One simple outline icon of [an open notebook / a single leaf /
a closed shipping parcel] for a fictional stationery shop
product badge. Square composition with generous padding,
rounded line ends, dark navy #18345F only, no lettering,
no filled background, no gradients or shadows.
Transparent background.
Generate and keep the original
Each badge was generated separately with Classic, one SVG, a transparent background and no image reference. Each generation displayed two credits.
| Original download | Raw bytes | Paths | What needed attention |
|---|
| Notebook | 23,180 | 21 | Six fill values rather than one flat navy |
| Leaf | 3,726 | 1 | Navy did not exactly match the requested value |
| Parcel | 4,923 | 2 | A gradient remained despite the prompt |
Name revisions by what changed
Use separate filenames for generated and manually edited assets. The distinction matters when someone later asks whether a color or path came directly from the model.
For this project, the manual navy files replace fill values with #18345F and change the aspect-ratio setting to proportional fitting. They retain the original path coordinates. This makes their colors consistent; it does not make their line weights or visual complexity identical.
An AI edit removed the parcel gradient, but also changed its geometry and framing. A different edit reduced the notebook's horizontal ruling from six to two lines per page. The original notebook brief had not specified a line count, so that was a refinement of the design requirement.
Download the flat parcel revision and two-line notebook revision to compare them with their originals.
Place the files in the actual layout

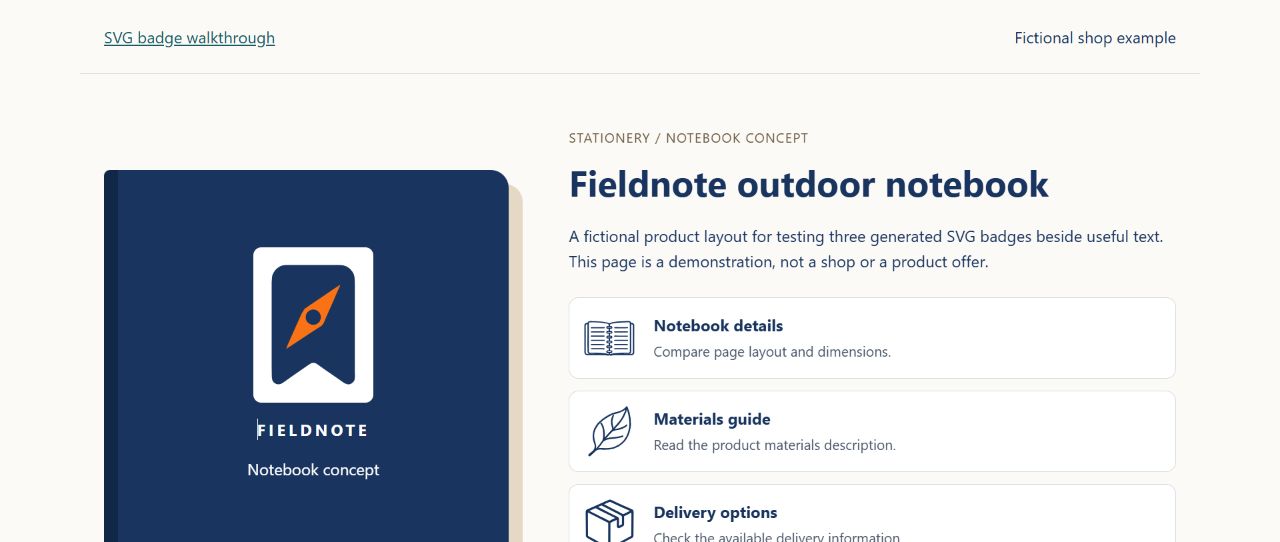

The working product-page example uses three manually recolored badges in 52-pixel boxes. It is a fictional HTML demonstration, not a live shop. Its labels make no claims about recycled materials, shipping speed or products for sale.
Open the example, check the badges beside their labels, and try the notebook-details disclosure. In your own site, repeat the check in the intended mobile layout and with keyboard navigation. The demonstration's desktop rendering was inspected; it is not a compatibility guarantee for every device.
The ecommerce SVG guide contains the original-versus-manual comparison and exact file measurements.
Optimize only after the design is accepted
Keep a copy before changing precision or removing elements. File-size reduction alone does not establish that the image remains suitable.
In a separate Fieldnote logo exercise, a prepared 2,652-byte SVG became 1,901 bytes with SVGO 4.0.0. The files matched exactly in the tested 24- and 128-pixel raster comparisons, while a small number of channel values differed at 512 pixels. That result applies to those files and settings.
The logo optimization tutorial includes the configuration, accessible title and original/optimized downloads. Use it as a repeatable example, then check your own file at its intended sizes.
Team Training Framework
Have the next person reproduce one small task: open the original, identify the intended final version, change a fill value, and place the SVG in the example layout. Note the step that caused confusion. That tells you more about a handoff than an assumed adoption percentage.
This is a file-based collaboration exercise. It does not depend on shared team workspaces, administrator roles or other unverified product features.
Workflow Integration Examples
A simple handoff folder can contain the following:
fieldnote/
originals/
notebook-original.svg
leaf-original.svg
parcel-original.svg
final/
notebook-manual-navy.svg
leaf-manual-navy.svg
parcel-manual-navy.svg
example/
ecommerce-example.html
README.txt
This is a suggested folder layout, not an archive download. If you copy the example HTML into another folder, update its image paths to match your files.
Quality Control Systems
In the README, describe the intended use, final filenames, manual changes and any unresolved design constraint. Keep the generated originals separately. Include relevant licenses for third-party assets.
For file-level checks, follow the five SVG checks: parse the XML, inspect image elements, compare actual colors, check proportional fitting, and view the result at the intended size.
Troubleshooting Guide
If a recolor changes the silhouette, compare the revision with the original rather than assuming it is a fill-only edit. If a preview stretches, inspect the viewBox and aspect-ratio setting. If multiple icons look mismatched, changing every fill to one color may not be enough; compare their weight and detail together.
Record cost and effort without inventing ROI
The three initial badge generations consumed six displayed credits. The parcel and notebook edits added four, for ten credits across this badge exercise. The separate Fieldnote logo generation and recolor added another four, making 14 for the combined demonstration.
These are credit counts, not dollar prices or a representative cost per approved asset. Check current pricing and access for your account. Record manual cleanup and review time in your own trial before estimating savings; no timing study was performed here.
Implementation Checklist
Before handing off, confirm that the final files open, the palette and sizing suit the layout, the original files remain available, and another person can identify the intended version. Keep any unresolved issue explicit instead of calling every generated file finished.
Conclusion
A small completed trial gives you a concrete basis for choosing a workflow: the actual files, revisions, integration effort and usable result. For checks specific to developers or designers, continue with choosing an AI SVG generator by task.
